P89LPC900 Family
Under the moniker of P89LPC900, NXP Semiconductors have introduced an entirely new family of 80C51 successors that have a number of pins ranging from 8 to 80 and are all based on an (in-system-programmable) flash memory. An important characteristic of the controller is that despite a large number of new features it is still fully compatible with the 80C51.
One of the most significant features of the P89LPC900 Family is that the core now requires only 2- clock cycles per instruction, 6x faster. 8051 experts will already know that this used to be 12 or 6 cycles until now.

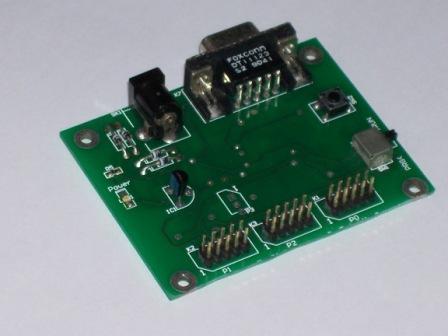

HT-ISP900 2-CLK 8051 Programmer/Development Board
- Features
- Documents
- How to Order?
- 8051 Central Processing Unit
- On-chip Flash Program Memory with In-System Programming (ISP) and In Circuit Programming (ICP) capability
- Boot ROM contains low level Flash programming routines for downloading via the RS232
- Flash memory reliably stores program code even after 10,000 erase and program cycles with 10-year minimum data retention
- Programmable security for the code in the Flash. The security feature protects against software piracy and prevents the contents of the Flash from being read
- 26 general purpose I/O pins connected to 10pins header connectors for easy I/O pins access
- AC/DC (9~12V) power supply – easily available from wall socket power adapter
- Industrial popular window Keil C compiler and assembler included (Eval. version)
- Free Flash Magic Windows software for easy program code down loading
- Software bundle in CD-ROM, including tutorials, compiler/assembler,programming utilities, applications notes, 8051 based projects and examples programs
- Getting Started User Manual
- Specifications
- Compiler & Assembler
- uC/51 ANSI C-Compiler 8KB Code Limited
- Keil C Compiler Version 7.50A
- Real-Time Operating Systems (RTOS) for 8051
- Applications Examples
- Extra related information
All credit card and personal details are kept secure, and our customer list is not disclosed to any third party. Most shipments are sent within 48 hours of your order.
US$59.00 Paypal
