Description

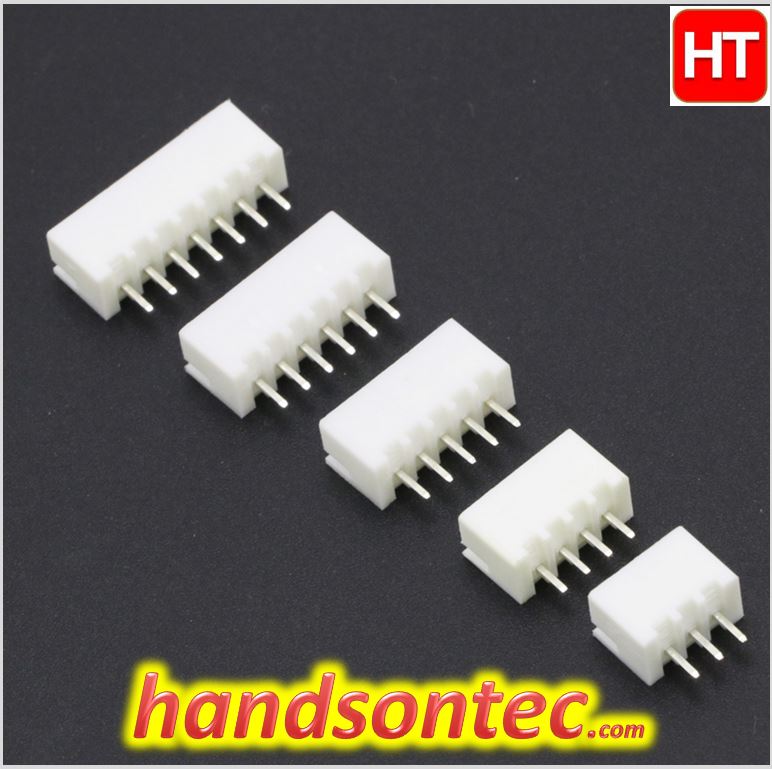

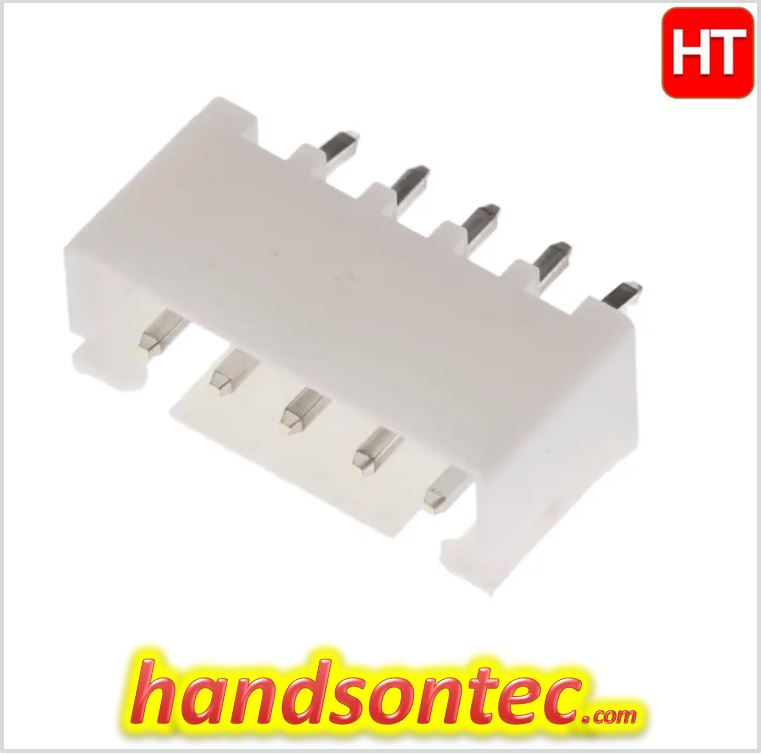

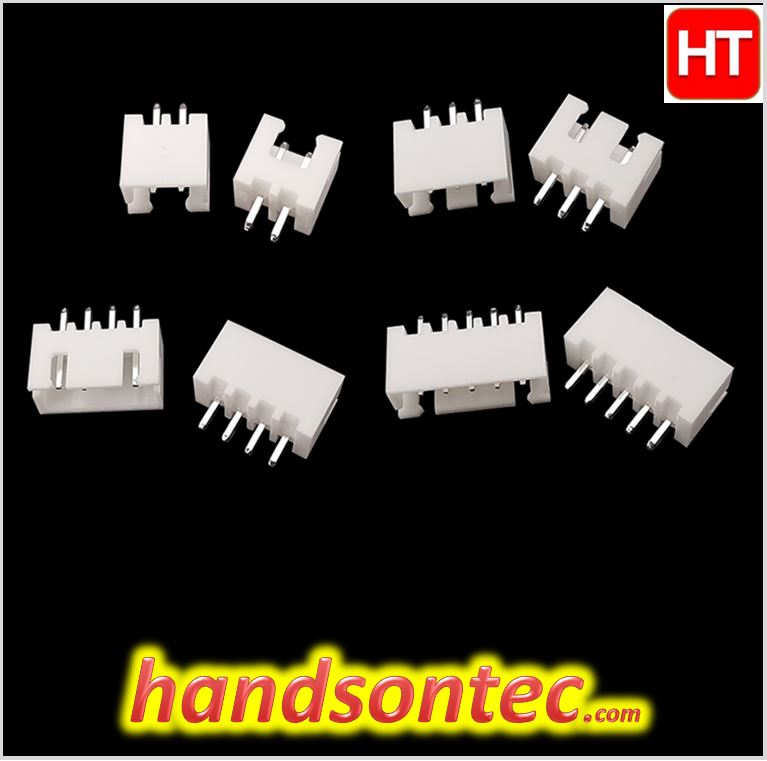

These XH Series Box-Type Shrouded Headers are available in Top Entry configurations. The wafer material of these XH Series Box-Type Shrouded Headers is PA66 with a rating of UL 94V-0, colour is natural (White). Posts are Tin plated Brass for these XH Series Box-Type Shrouded Headers. The four-sided, box-shaped shroud prevents the receptacle from being mis-inserted or pried during insertion and removal.
Brief Data:
- Series: XH.
- Pin Pitch: 2.5mm.
- Number of Contacts: 2~8.
- Number of Rows: 1.
- Body Orientation: Straight.
- Shrouded/Unshrouded: Shrouded.
- Connector System: Wire to Board.
- Mounting Type: Through Hole.
- Termination Method: PCB Solder.
- Contact Material: Tinned Brass.
- Rating: 3.0A/250V.

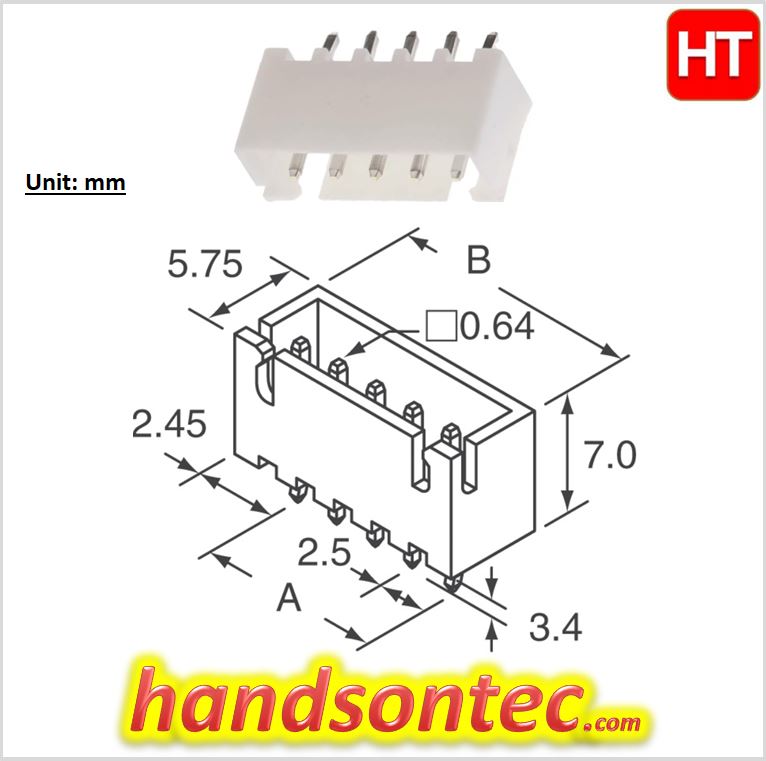

Detail Specifications:
