All Metal Ø2.1mm DC Power Socket


All Metal 2.1mm DC Power Socket Panel Mount.

Pack of 1-pieces/lot.

Image is for package illustration purpose only. Refer product specification for detail.

In stock

SKU: CON1118 Category:

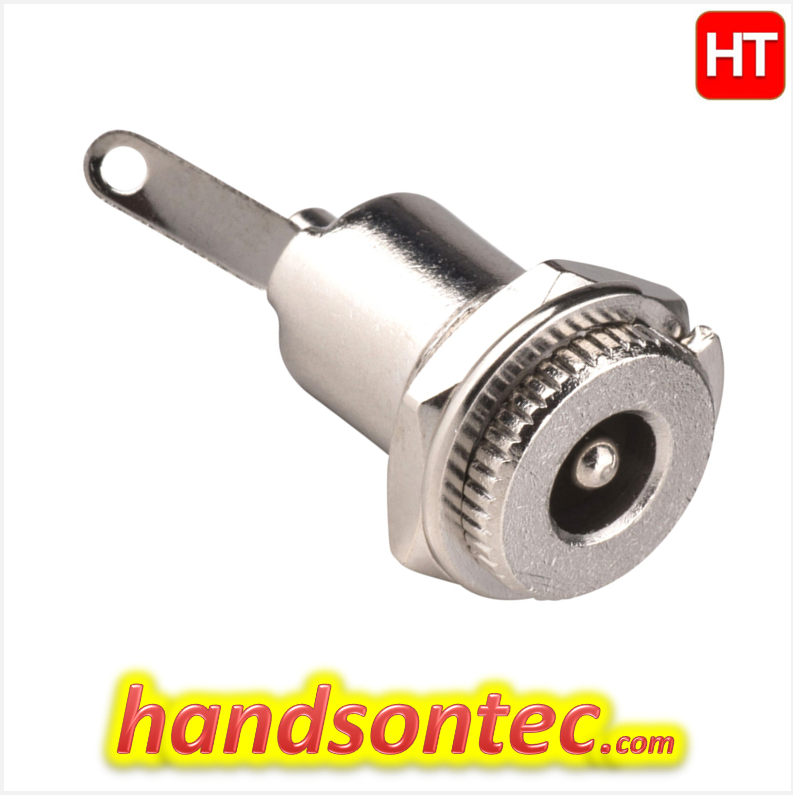

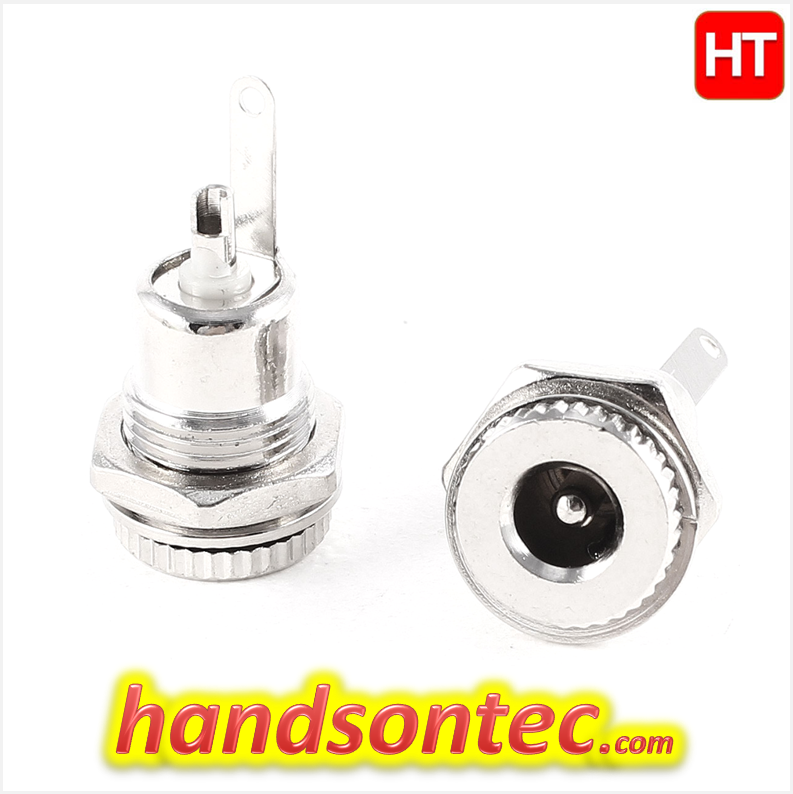

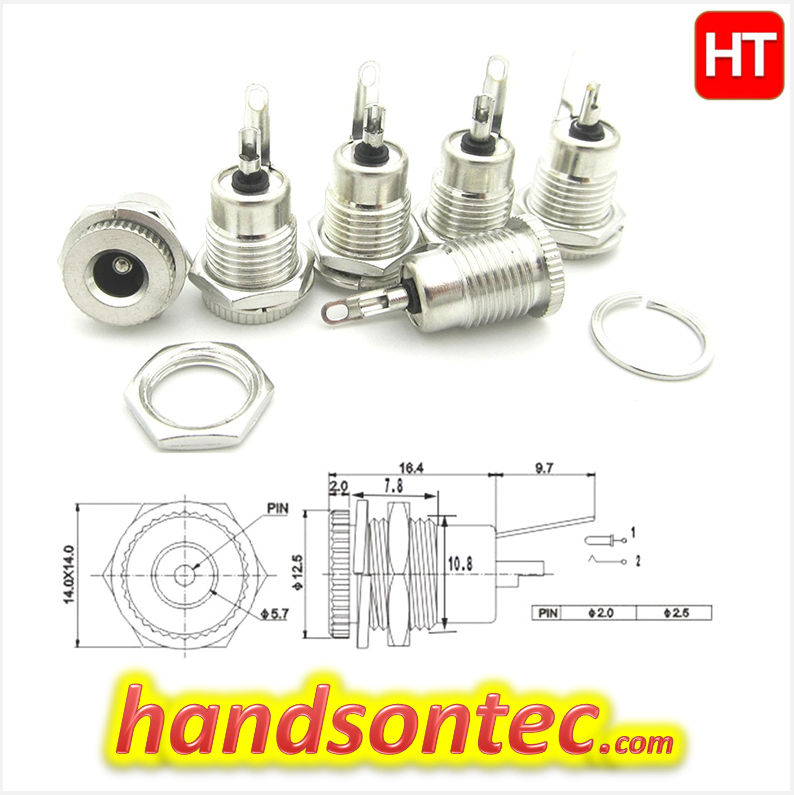

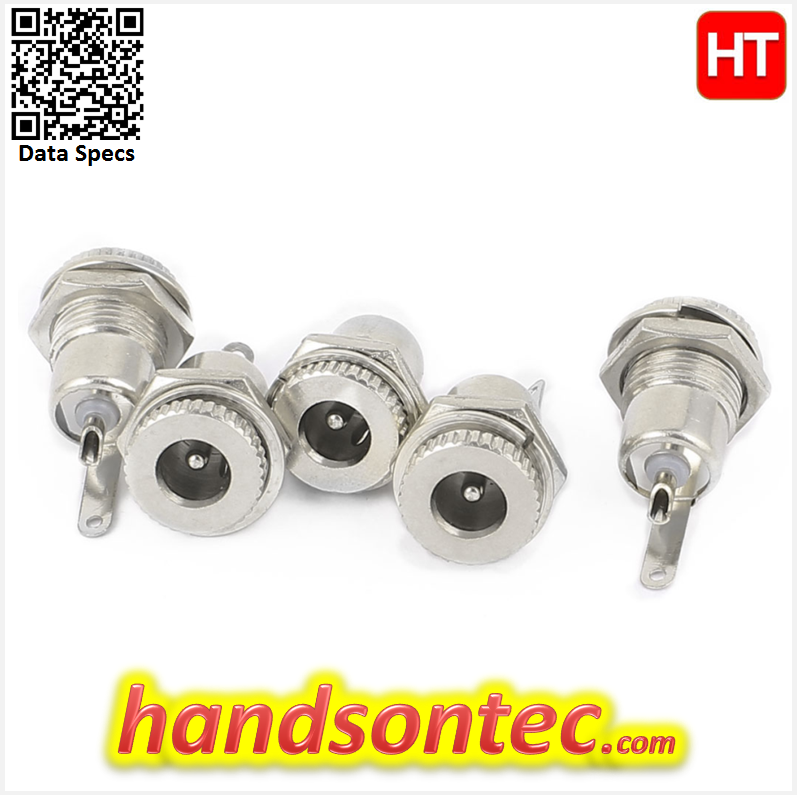

All metal material, silver tone, 2.1mm x 5.5mm DC panel mount power socket. Made from durable metal material for long life span.

Brief Data:

  • Body Orientation: Straight.
  • Mounting: Panel Mount.
  • Inner Pin Diameter: Ø2.1mm.
  • Contact Resistance: ≤03mΩ.
  • Rated Load: 5A @ 30VDC.
  • Insulation Resistance: ≥100MΩ.
  • Insertion and Extraction Force: 3N~30N.
  • Withstand Voltage: 500AC/min.
  • Temperature -40°C~+70°C.

Related Information:

Our Local Outlet:


Additional information

Weight 0.08 kg
