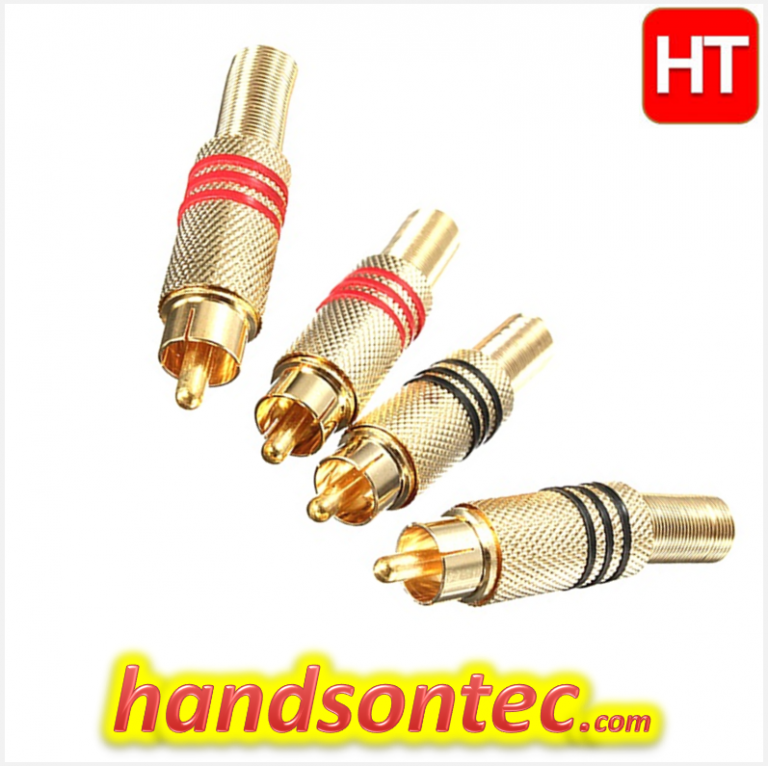

RCA Audio Jack with Metal Housing

$0.65

RCA Audio Jack with Metal Housing.

Pack of 1-piece/lot.

Image is for package illustration purpose only. Refer product specification for detail.

SKU: CON1176 Category:

Description

RCA Jack with metal housing for Screw-on Cable Assembly. Single straight Type.

Premium range of RCA Jacks with full metal casing provide the user with a reliable connection which can be used in a variety of Audio / Video applications. Available in cable mounting , with Red and Black color ring.

Brief Data:

  • Gender: Male.
  • Indicator Color: Red & Black PVC Ring.
  • Insulating body: ABS.
  • Insulation Resistance: 100M Ω Min at 500VDC.
  • Rated Voltage/Current: 24VDC/2A Max, 100VAC/1A Max.
  • Dielectric Withstanding Voltage: 500VAC at 60Hz for 1-minute.
  • Mounting Type: Cable Assembly.
  • Body Orientation: Straight.
  • Housing: Metal Gold plated.
  • Contact Material: Copper Alloy.

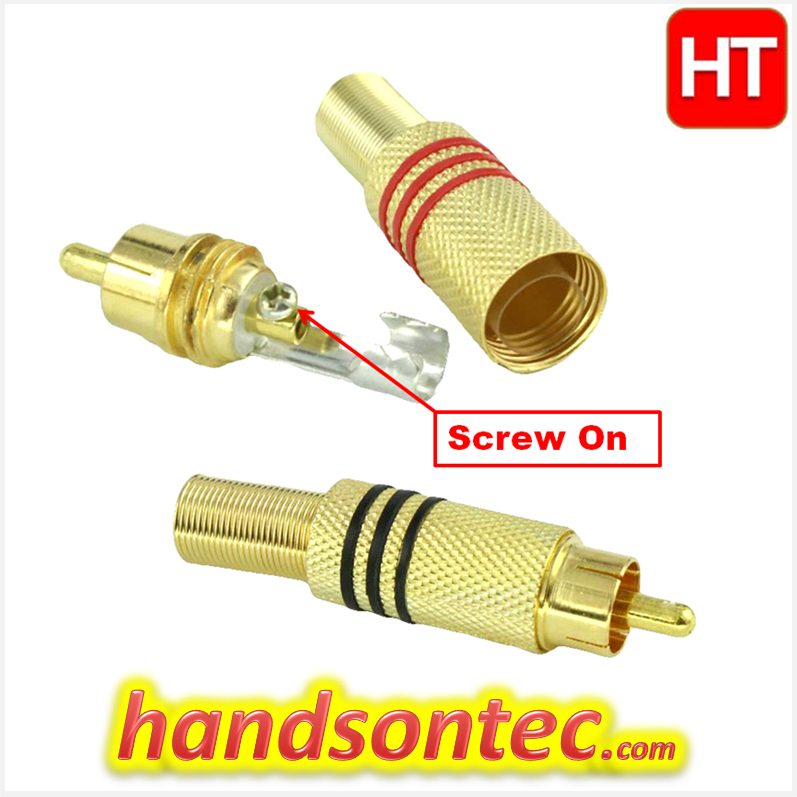

  • Termination Method: Screw on.

Related Information:

Our Local Outlet:

  • Shopee
  • Lazada



Additional information

Weight 0.05 kg
Color

Red, Black
