Description

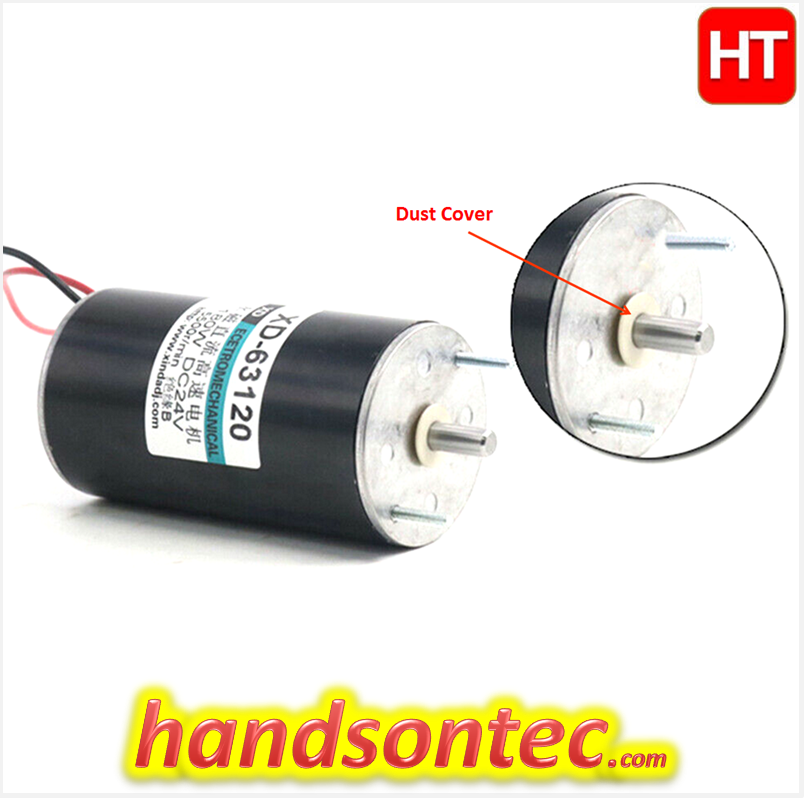

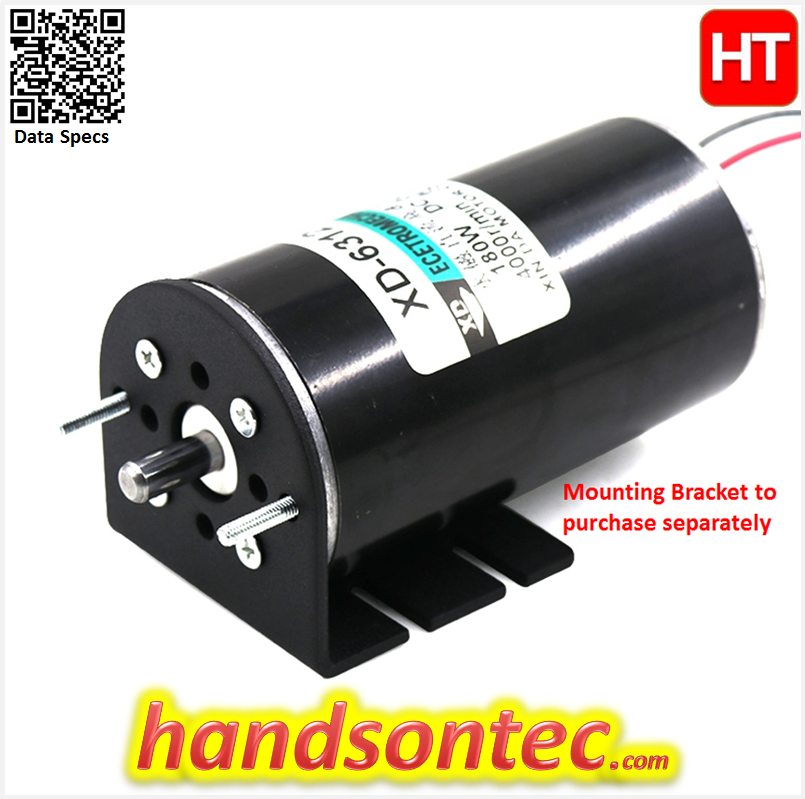

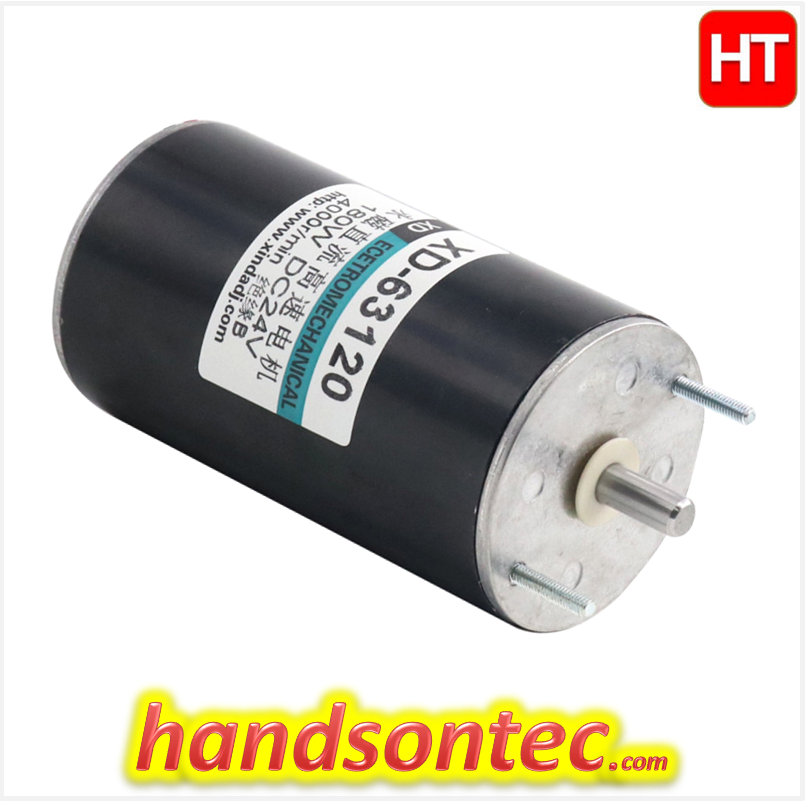

Dual Ball Bearing long life DC motor with less than 40dB low noise. High torque with operating voltage 24Vdc. Suitable for motor tools application and DIY projects.
General Specification:
- Motor Type: XD63D120.
- Low Noise Type: < 40dB.
- Operating Voltage: 24Vdc.
- Mechanical Output Power: 180W.
- No Load Speed: 4,000 RPM @ 24V.
- No Load Current: 850mA @ 24V.
- Rated Torque: 27N.cm/2.8Kg.cm.
- Stall Torque: 210N.cm/22Kg.cm.
- Long Life: 3,000 Hours Continuous operation.
- Replaceable Carbon Brush.

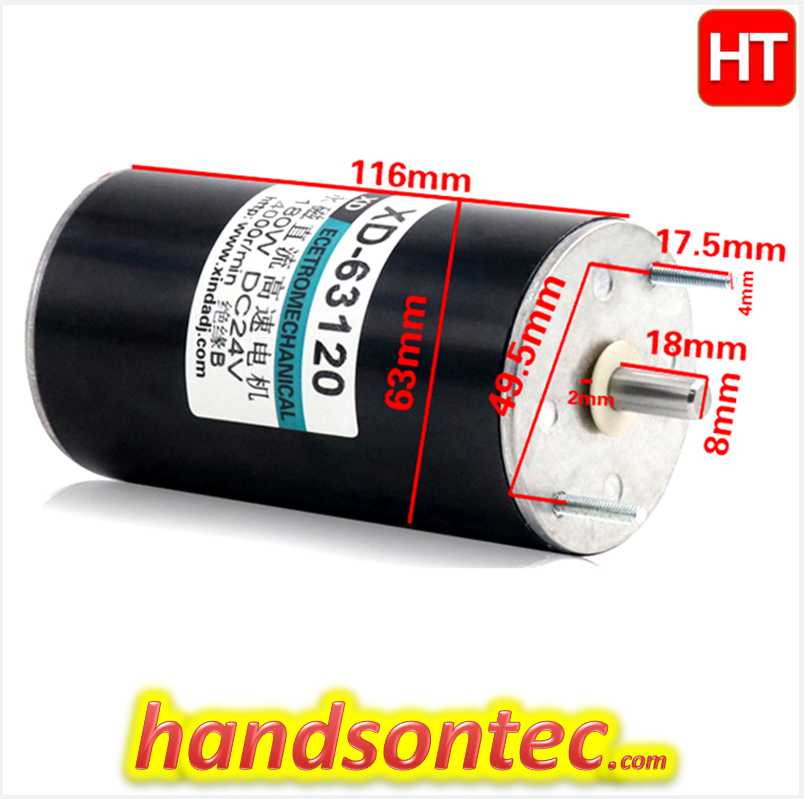

- Overall Size: 116 x Ø63 mm.
- Shaft: D Type Ø8mm.
- Weight: 1240g.
