Description

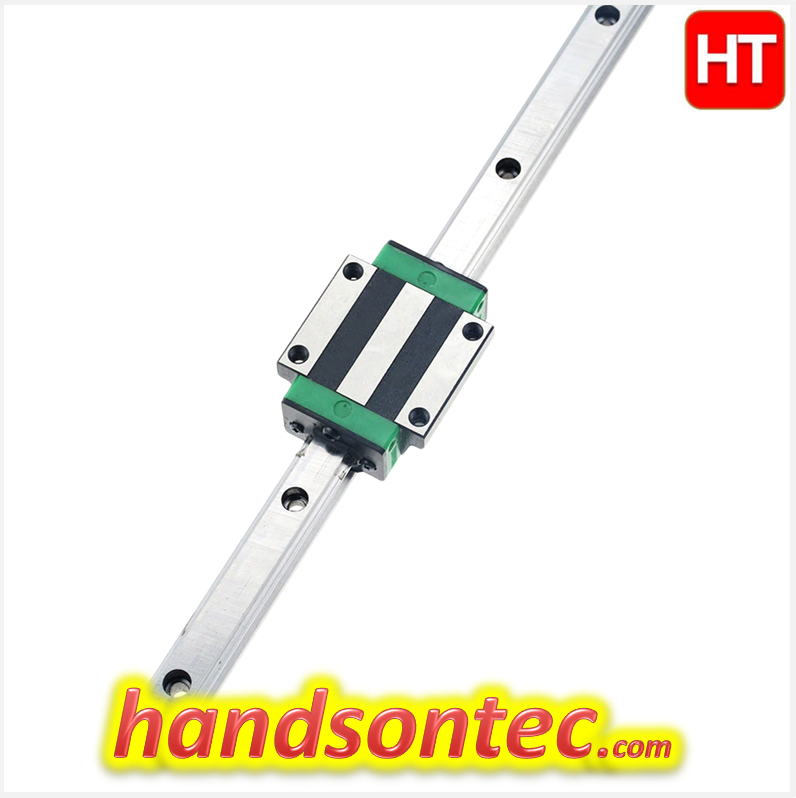

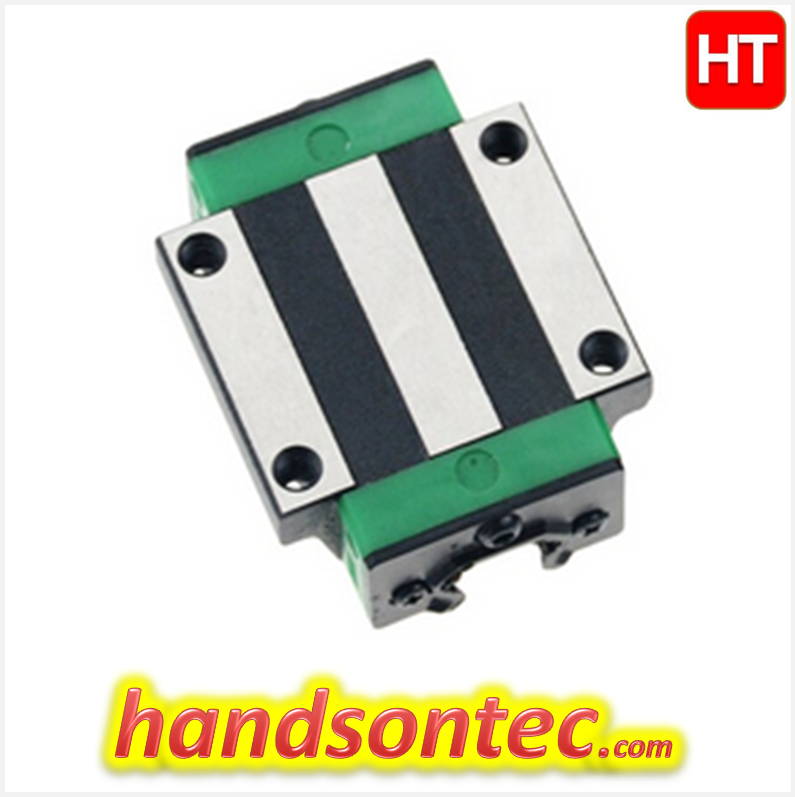

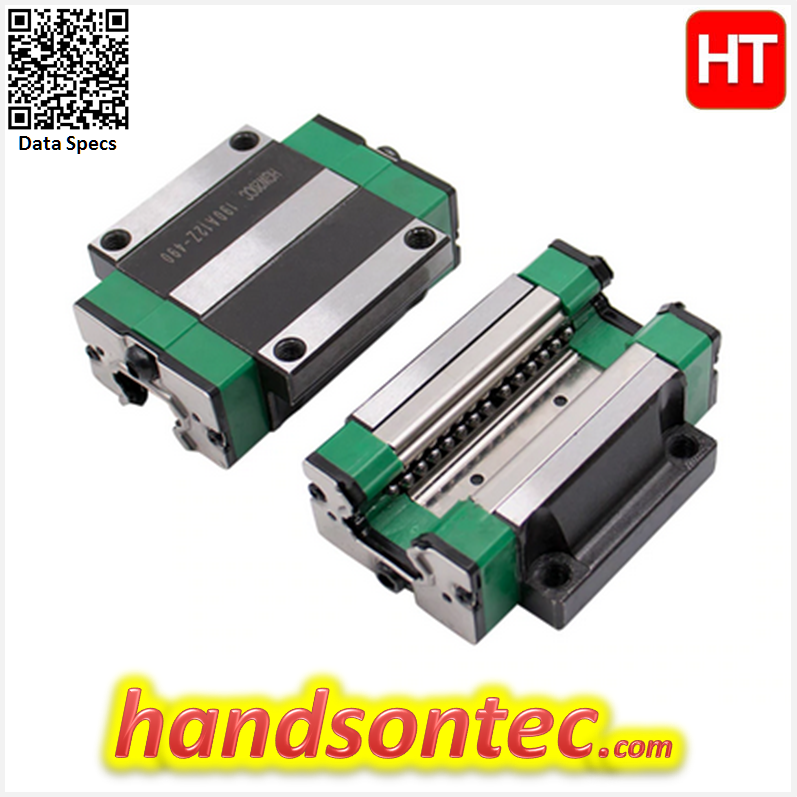

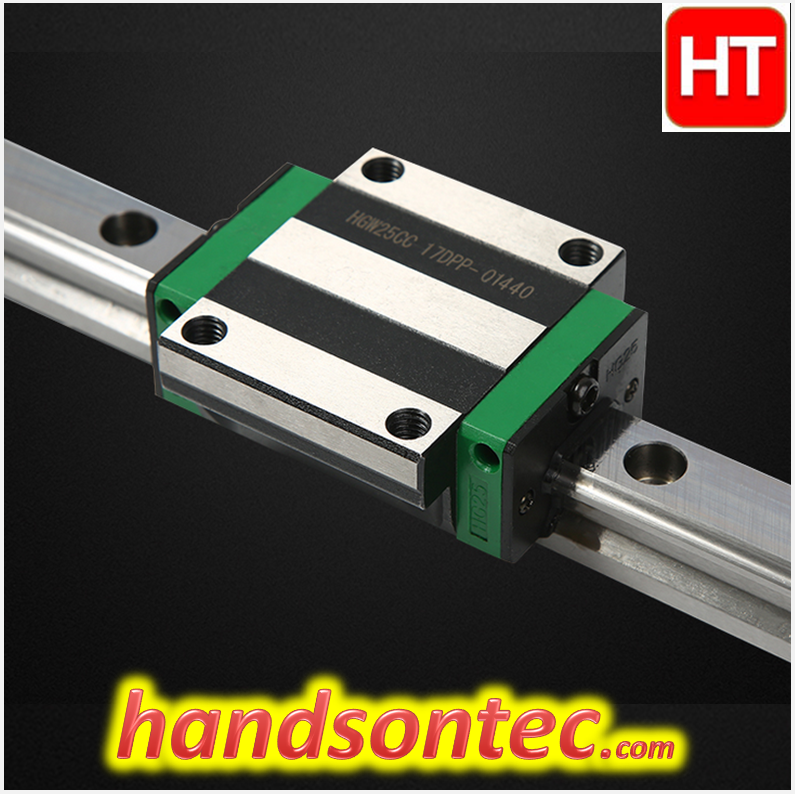

HGW Series Heavy Load Linear Carriages are suitable for a wide range of applications, including, but not limited to, miniature applications, machine tools, and other environments where linear motion guides are required. Linear Motion Bearings enable smooth movement and positioning in one dimension, and are used in many different applications.
Brief Data:
- Model No: HGW25CA.
- Carriage Type: Flange Top Mounting.
- For Rail Width: 25mm.
- Carriage Length: 84mm.
- Carriage Width: 70mm.
- Dynamic Load Rating: 12.5kN.
- Static Load Rating: 25.2kN.
- Matching Rail: HGR25.
- Weight: 600g.
Detail Specification:
